CNC steel bar bending hoop plate reinforcement machine
Email:
sales@hebeiangyi.com
WhatsApp:
+86-13932956881
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
CNC wire stirrup bending machine
Model Pioneer 12E-9 Pioneer 12E-6 Single-line processing capacity 4-12 rebar 4-12 rebar Double-track processing capacity 4-8 rebar 4-8 rebar 4-10 Round steel bar 4-10 Round steel bar Transmission mode Gear box Speed reducer Bend angle +180° +180° Maximum traction speed 75m/min 75m/min Maximum bending speed 1000/sec 1000°/sec Wire feeding servo motor 20KW 11KW Bending servo motor 7.5KW 5.5KW Cut off the motor 4.0KW 4.0KW Air compressor 4.0KW 4.0KW Bend angle Positive and negative 180° Positiveand negative 180° Precision of length ±1mm ±1mm Angle accuracy ±1° ±1° Number of processing pieces ≤2 ≤2 Equipment power 35.5KW 24.5KW Weight 2T 1.5T Dimensions of main machine 3880*1100*2100mm 3400*1100*1850mm Product Application
Automatic cnc rebar bending machinery is a multi-functional fully automatic machine forprocessing steel bar using Programmable Logic Controller system.
1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not damage.
2. HlGH quality feeding and straightening roller improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.
3. Touch screen operation, independent research and development system, easy to learn.Operators do not have to worry about not using.
4. All straighten roller are made of high quality alloy steel,feeding roller is made of CR12Mov high hardness, good wear resistance, improved service life.
5.The product is stable in operation, and the produced stirrups are accurate in size and shape.
Feature
1, combine with horizontal and vertical straightening wheels, drive by Big 20kw brand servo motor,make sure best accuracy when straightening rebar.
2, bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bending precision.

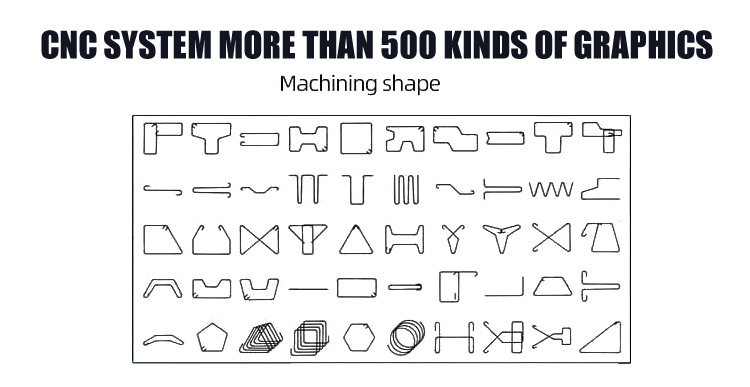

3, large storage capacity can save many processing graphics.
4, PLC control system,Eview software,SFC servo motor.
5, straightening, measure length, bending, shear at same time,processing in high efficiency.
CNC steel bar bending hoop plate reinforcement machine
